Stout Nitro Faucet – Model SF-01 (NSF #18 Certified)

Premium 304 Stainless Steel | Hand-Polished Finish

Experience the ultimate in smooth pour performance with our Stout Nitro Faucet SF-01, designed for coffee, stout, and other nitro-infused beverages. Crafted from high-grade 304 stainless steel, each faucet undergoes fine hand polishingfor a sleek, durable, and hygienic finish that meets NSF #18 certification standards for food safety.

Product Highlights

• Model: SF-01
• Certification: NSF #18 listed
• Material: 304 Stainless Steel
• Finish: Fine Hand-Crafted Polishing, mirror surface
• Design: Stout-style nitro faucet for cascading pour effects
• Restrictor Discs: Comes with 2 interchangeable discs to achieve the perfect cascade performance for nitro coffeeor stout beer
• Mounting Options: Can be mounted directly on a dispensing unit or on a shank (shank sold separately)
• Custom Handle: Available upon request (extra cost)
• Optional Accessories: Shank and handle sold separately

Technical Specifications

• Maximum Pressure: 5 kg/cm² (≈ 71 psi)
• Recommended Working Pressure: Less than 1 kg/cm² (≈ 14 psi)

Note: Excessive pressure may cause splashing.

• Connection: Standard fit for common draft systems
• Flow Type: Restrictor-controlled nitro pour

Use Cases

• Nitro cold brew coffee
• Stout beer (e.g., Guinness-style)
• Porter and dark ales
• Craft cocktails on nitro
• Cold-brew tea and infused beverages

Why “Stout Faucet”?

The term “Stout Faucet” refers to the English-style beer tap designed specifically for stout beers, such as Guinness. Unlike standard beer taps, a stout faucet includes a restrictor plate that forces the liquid through fine holes, creating a dense, creamy head and cascading effect when pouring nitro beverages.

Mica Heater Assembly with UL Certification

Overview

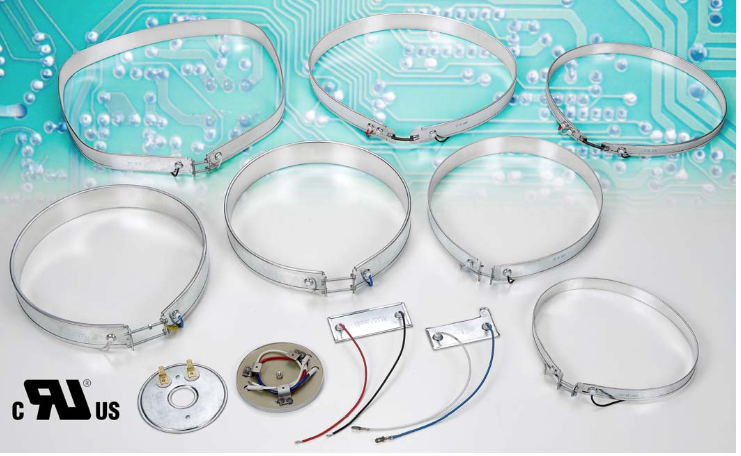

The DBT Holland Mica Heater Assembly is a high-quality, UL-recognized heating element designed for both household and commercial appliances. Engineered using NiCr heating wire wound on mica supports and enclosed in a durable aluminized or galvanized steel sheath, this heater ensures superior thermal efficiency, reliability, and long service life.

With flexible design options — including band, dish, or rectangular shapes — the Mica Heater can be customized to fit various heating applications and performance requirements. It is ideal for OEM manufacturers and appliance designers seeking safe, certified, and energy-efficient heating solutions.

Key Features

• UL Recognized Heater (File No. E257912)
  Certified according to UL 499# and CSA 22.2 No. 72-M1984 standards, ensuring compliance with North American safety regulations.

• High-Quality Construction
  Built with NiCr heating wire on mica supports and enclosed in an Aluminized or Galvanized steel cover for durability and efficient heat transfer.

•  Flexible Design Options
  Available in band, dish, or rectangular forms with standard tooling heater heights of 20, 25, 30, 35, 38, 40, 50, and 63 mm.

•  Versatile Electrical Range
  Operates on input voltages from 100V to 250V AC with a maximum surface load of 4.2 W/cm².

• Customizable Specifications
  Designed for fixed or multiple wattages, supporting both single- and dual-voltage configurations.

• Low MOQ & Cost-Effective Production
  Mature manufacturing process with low minimum order quantities and affordable tooling costs.

•  Ideal for Global Markets
  Fully compliant for UL-certified commercial and household appliances, making it easy to export and distribute across North America.

Technical Specifications

Model Identification

Applications & Use Cases

The DBT Mica Heater Assembly is suitable for a wide variety of heating applications in both consumer and industrialsettings:

1. Coffee Makers & Warmers – Ensures consistent temperature for optimal brewing.

2. Slow Cookers & Soup Warmers – Provides steady heat for long-duration cooking.

3. Rice Cookers – Delivers uniform heat distribution for perfect results.

4. Warming Plates & Food Heaters – Keeps food at serving temperature.

5. Laboratory & Industrial Equipment – Ideal for controlled heating in test chambers or instruments.

6. Household Appliances – Can be integrated into irons, toasters, and other heating devices.

7. Commercial Kitchen Equipment – Meets UL-197 requirements for safe and efficient operation.

Why Choose DBT Holland

• 25+ years of experience in heating technologies

• Reliable UL-recognized mica heater supplier

• Fast lead times & strong OEM customization support

• Expert assistance in UL and ETL certification compliance

• Competitive pricing for small and large production runs
