FH#ABFAZ-004 – Bulk Dispensing Faucet

Description of FH#ABFAZ-004 – Bulk Dispensing Faucet

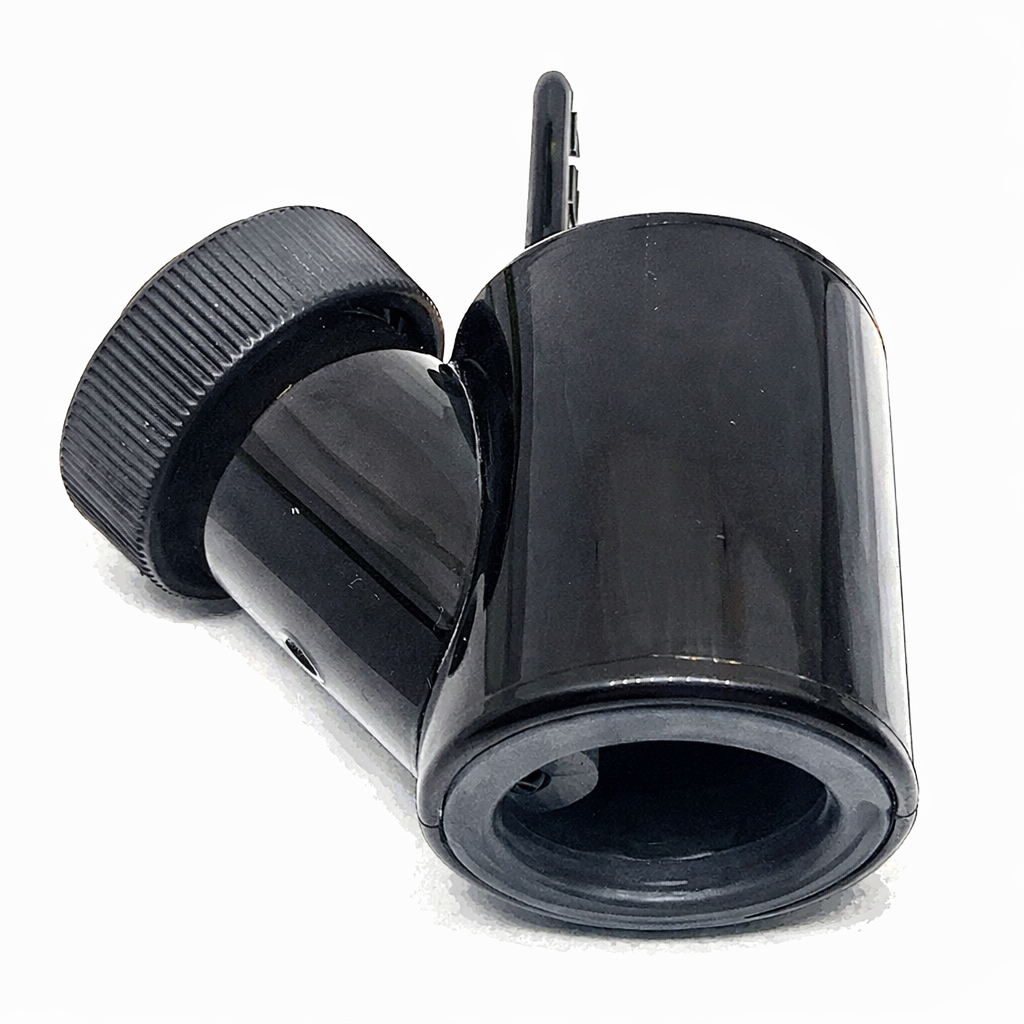

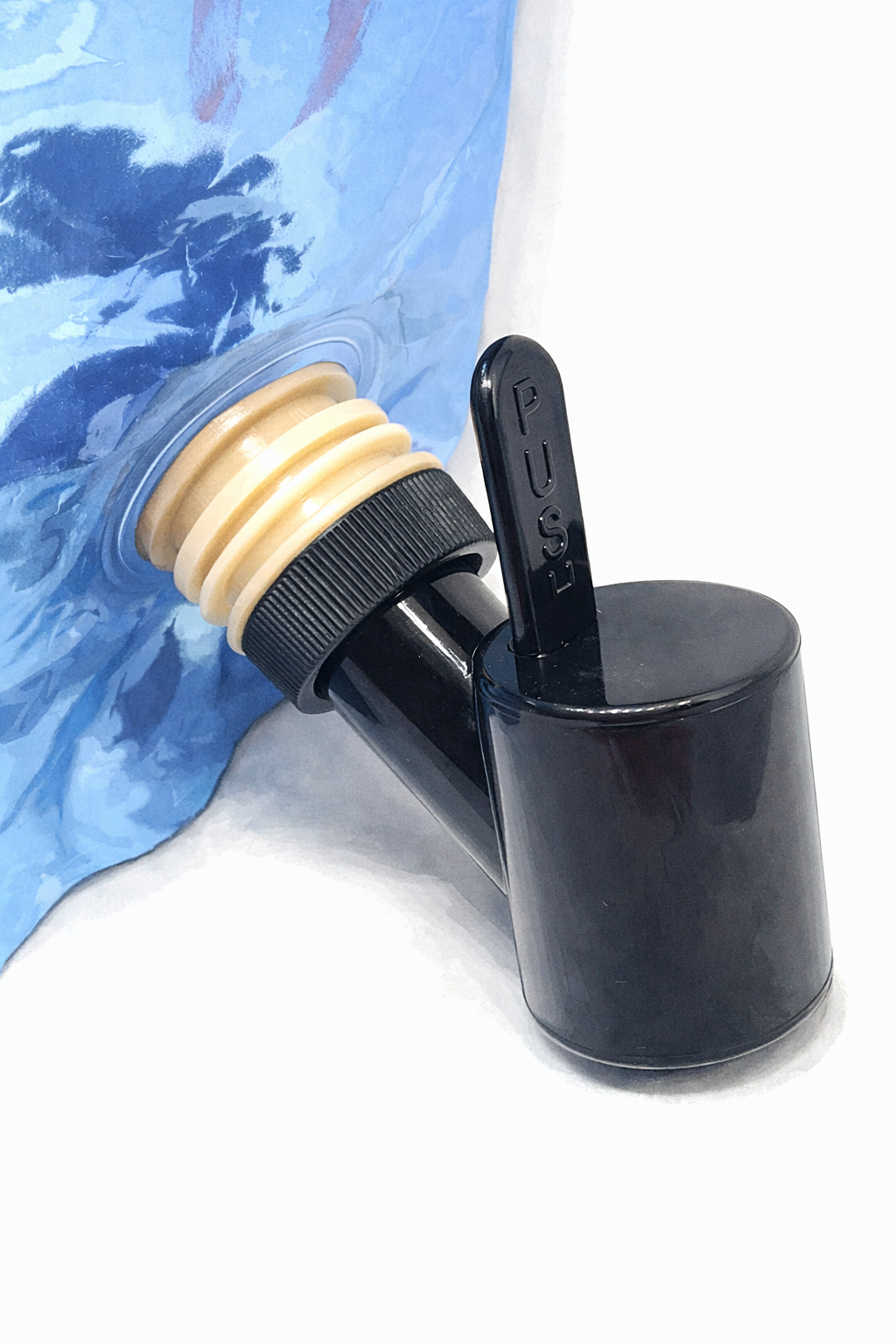

The FH#ABFAZ-004 Bag-in-Box dispensing faucet is designed for smooth and controlled dispensing of thick food products in high-volume service environments. Built for durability and hygiene, it provides consistent flow performance for condiments, sauces, and concentrates.

Key Features

• Durable black polypropylene construction
• Compatible with standard 38 mm (SP 400) thread spouts with 1.200" ID
• Designed for thick products such as ketchup, mustard, syrups, sauces, and fruit concentrates
• Optional color customization available upon request

Technical Specifications

• Flow rate: 20.22 oz/sec (9.48 gal/min / 43.10 l/min)
• Operating pressure: Gravity to 2 PSI
• Maximum temperature: 120°F (54°C)
• Thread size: 38 mm (SP 400)

Maintenance and Hygiene

The faucet is designed for easy cleaning and maintenance to support hygienic operation.

• Simple removal by loosening the retaining nut
• Clean with mild detergent and warm water, then rinse thoroughly
• Sanitize using an approved food-safe solution and allow to air dry
• Removable tubular seal for additional cleaning when required

Applications

• Quick service restaurants
• Catering and food production
• Self-service condiment stations
• Commercial kitchens and food processing
